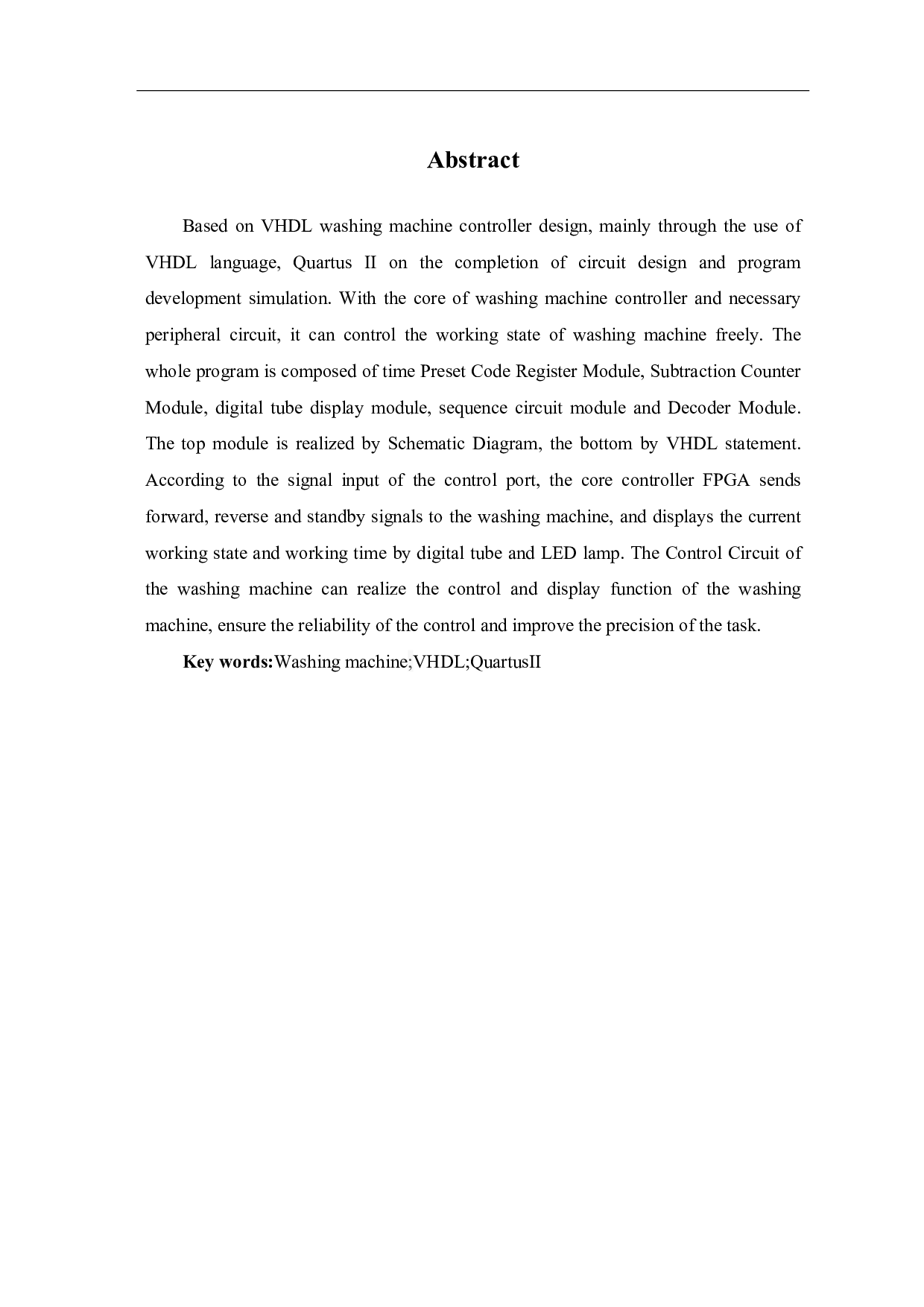

Abstract
Based on VHDL washing machine controller design, mainly through the use of
VHDL language, Quartus II on the completion of circuit design and program
development simulation. With the core of washing machine controller and necessary
peripheral circuit, it can control the working state of washing machine freely. The
whole program is composed of time Preset Code Register Module, Subtraction Counter
Module, digital tube display module, sequence circuit module and Decoder Module.
The to
