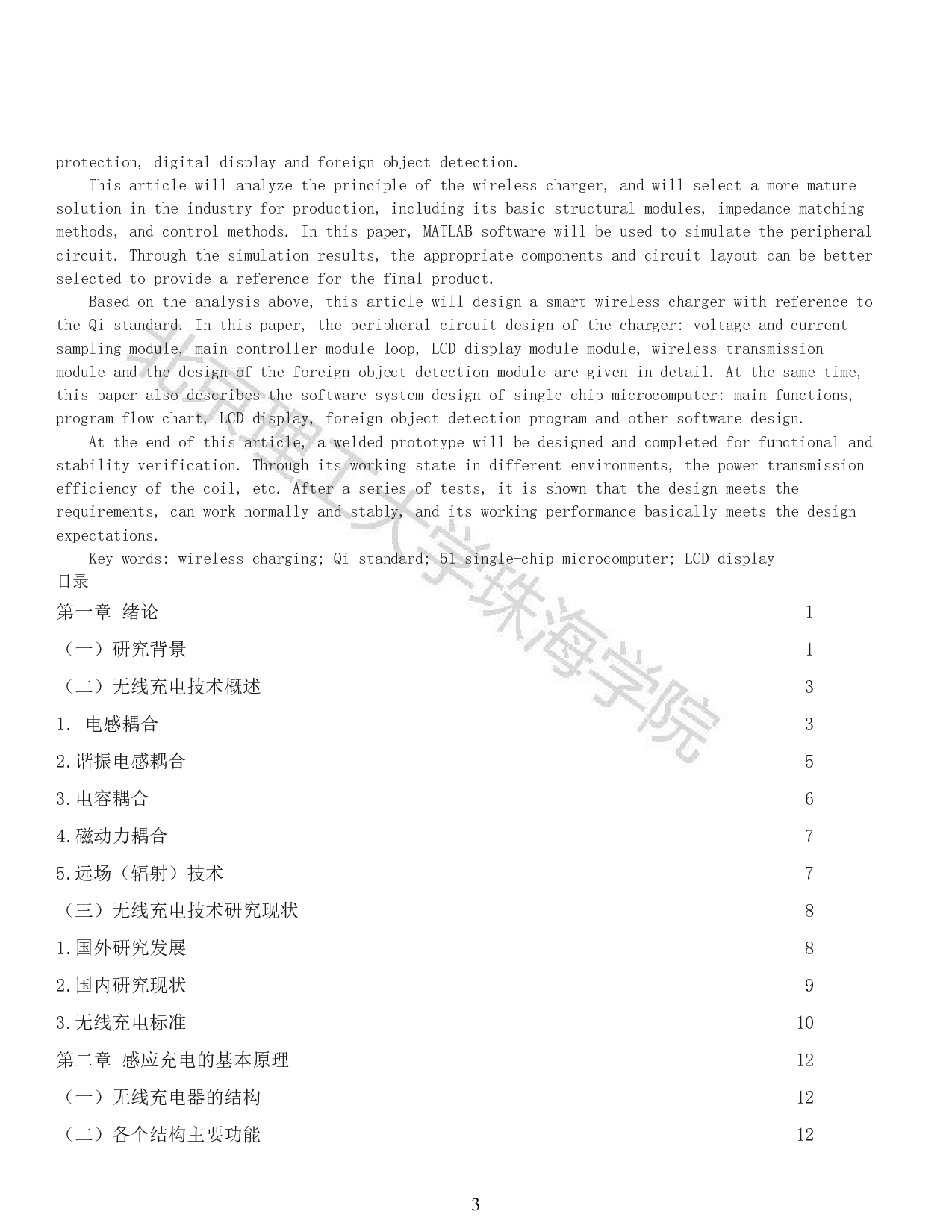

3
protection, digital display and foreign object detection.
This article will analyze the principle of the wireless charger, and will select a more mature
solution in the industry for production, including its basic structural modules, impedance matching
methods, and control methods. In this paper, MATLAB software will be used to simulate the peripheral
circuit. Through the simulation results, the appropriate components and circuit layout can be better
selected to provide a reference for
