全站仪在建筑物立面图测量中的应用研究-17299字.docx

2022及前全 DOCX   34页   下载0   2026-01-15   浏览1   收藏0   点赞0   评分-   21522字   20.00
温馨提示:当前文档最多只能预览 10 页,若文档总页数超出了 10 页,请下载原文档以浏览全部内容。

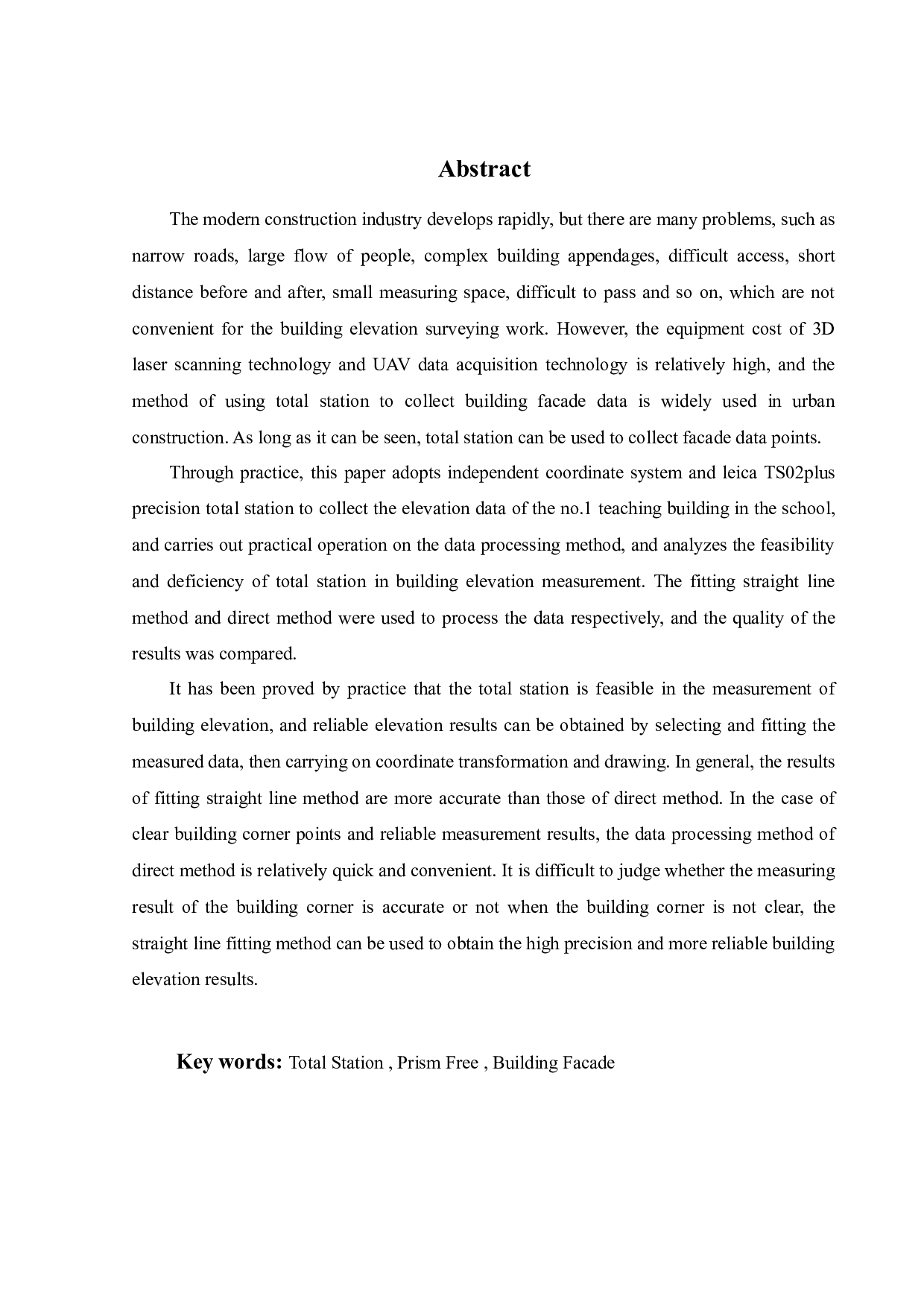

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第1页

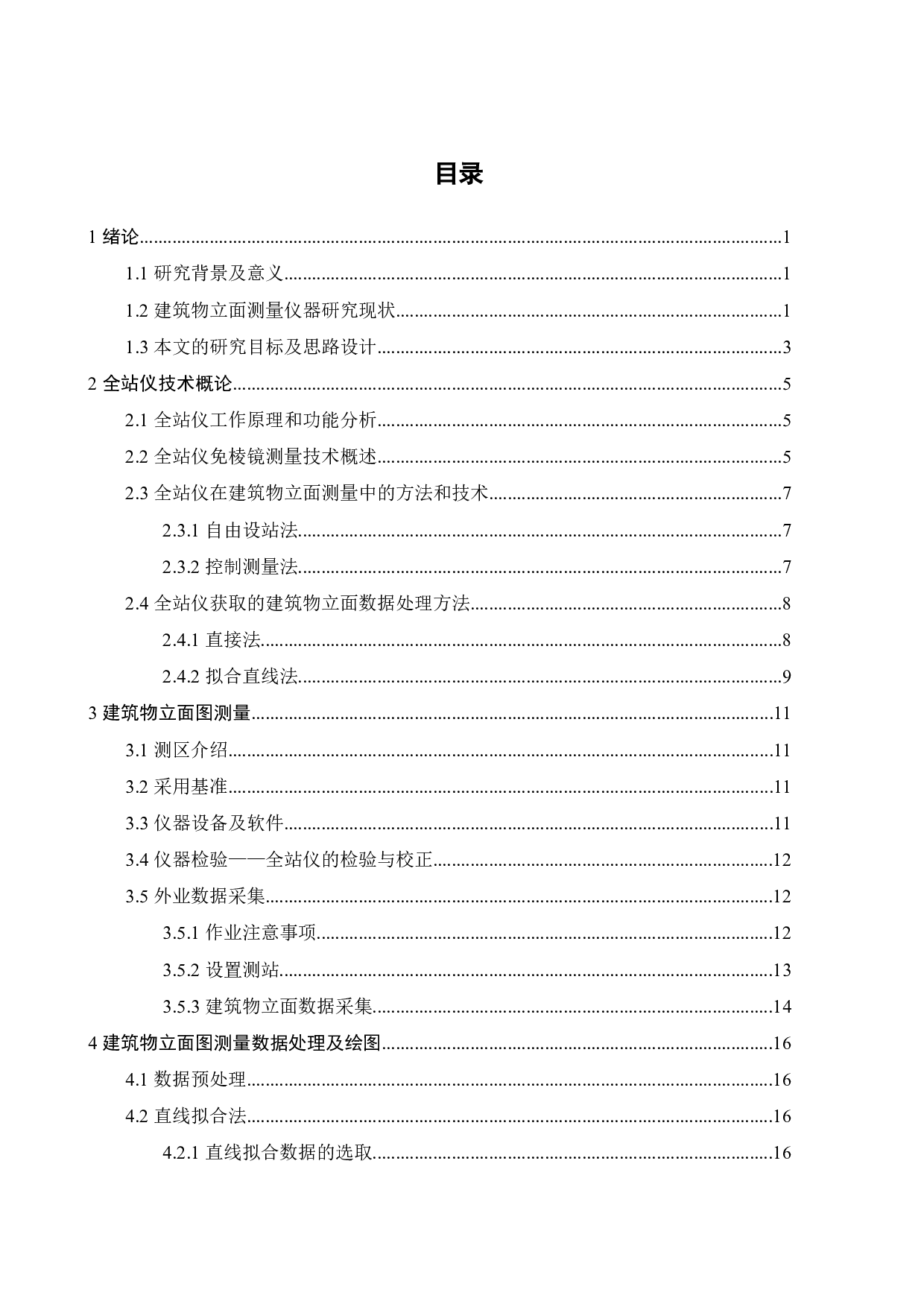

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第2页

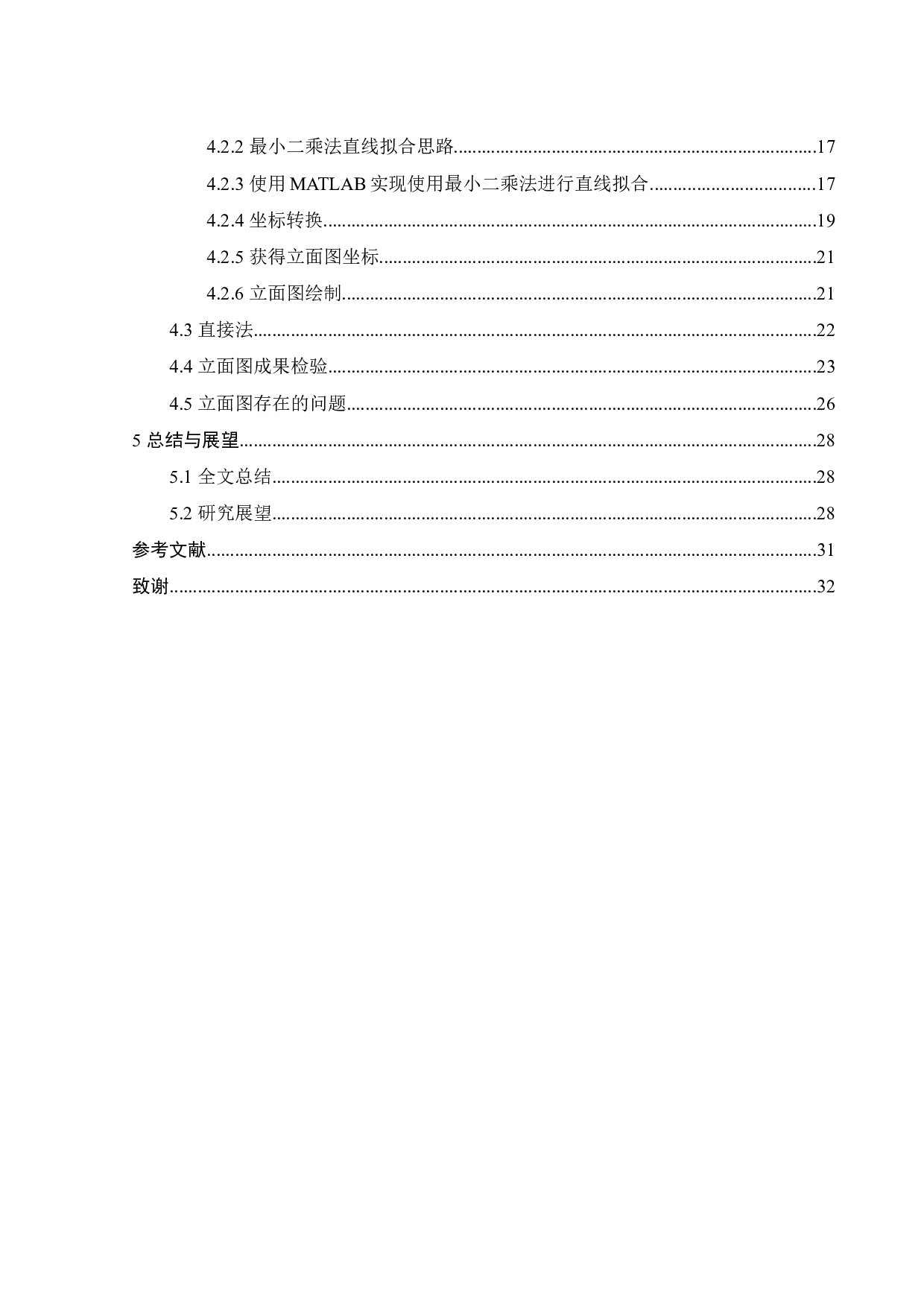

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第3页

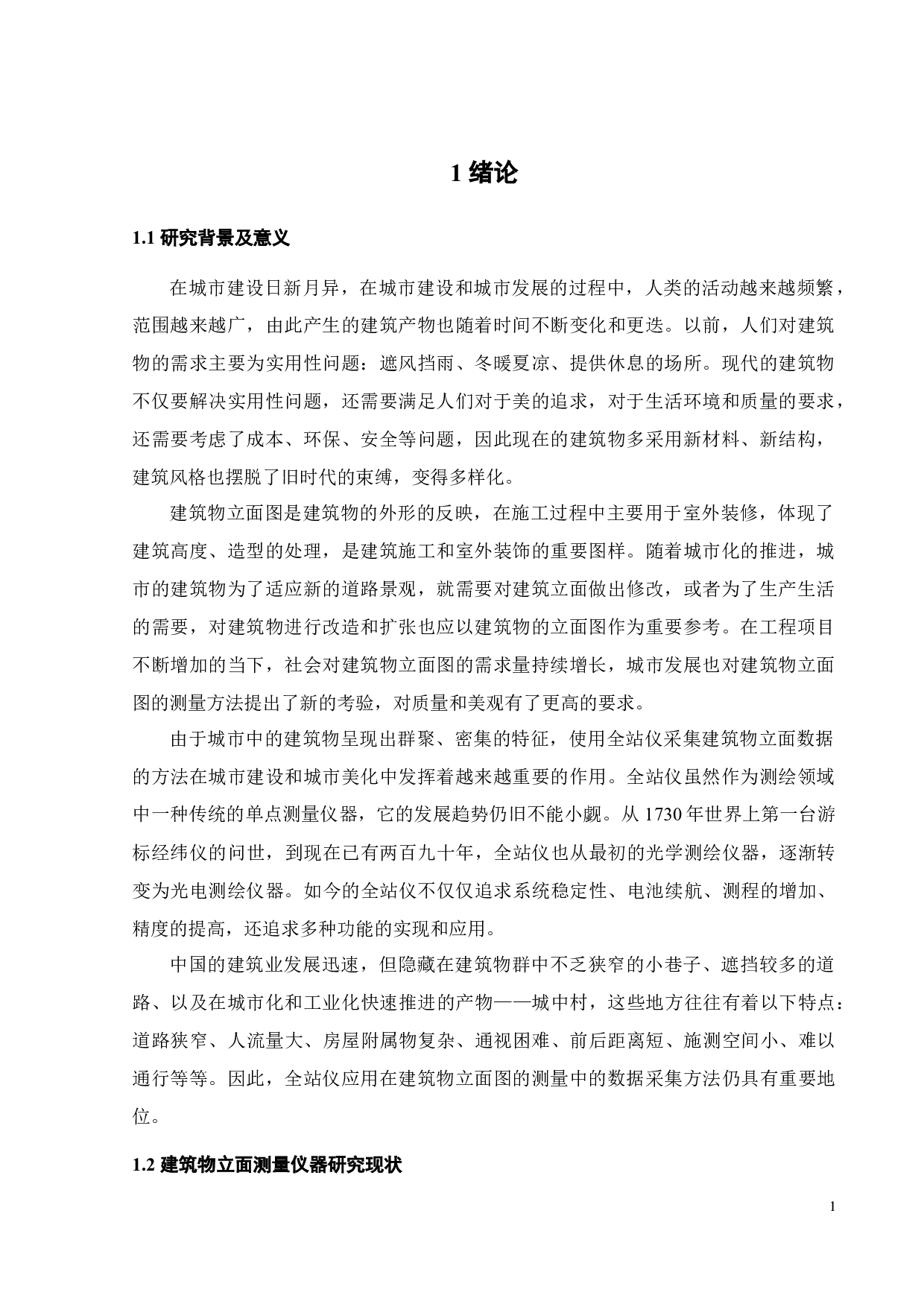

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第4页

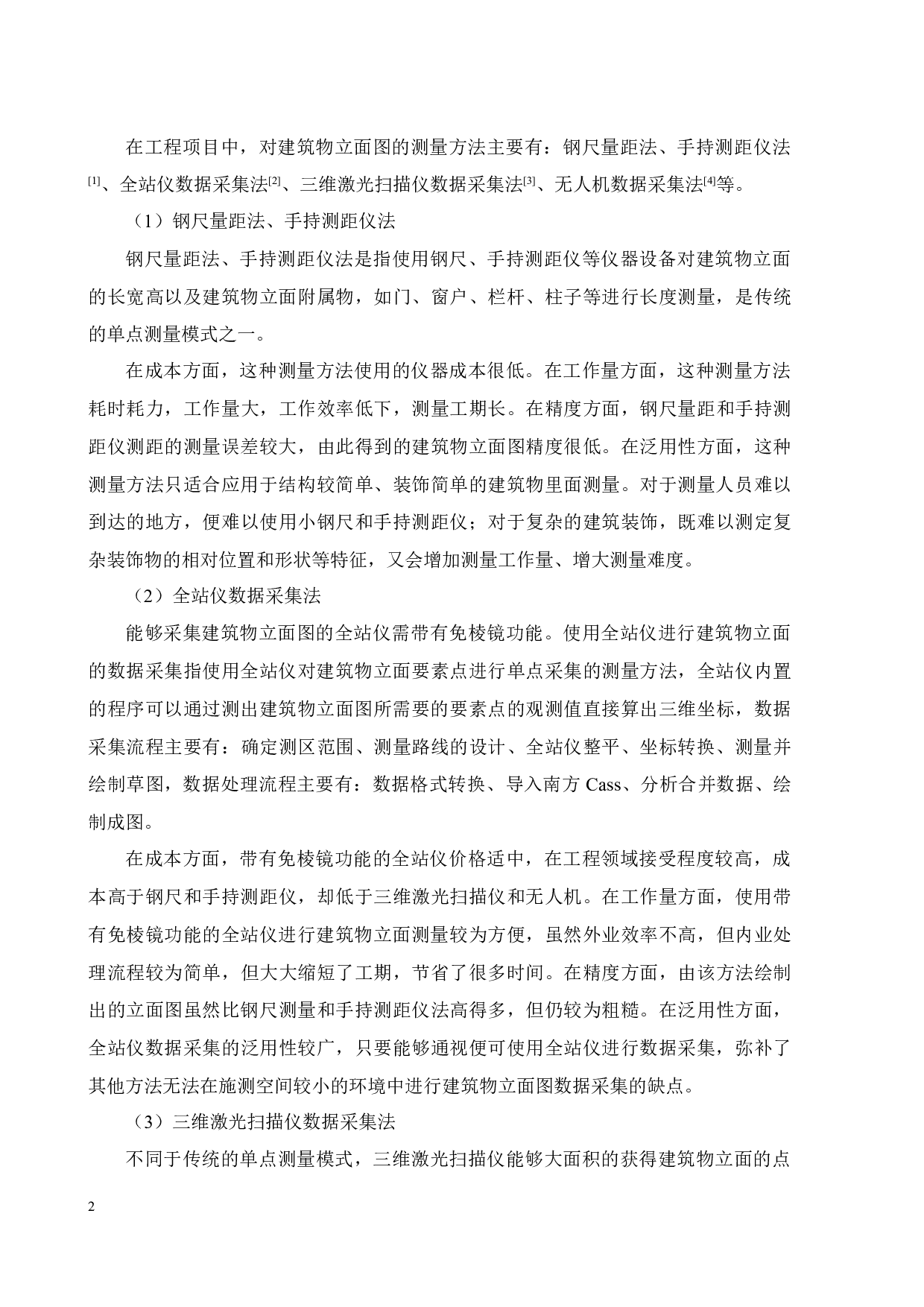

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第5页

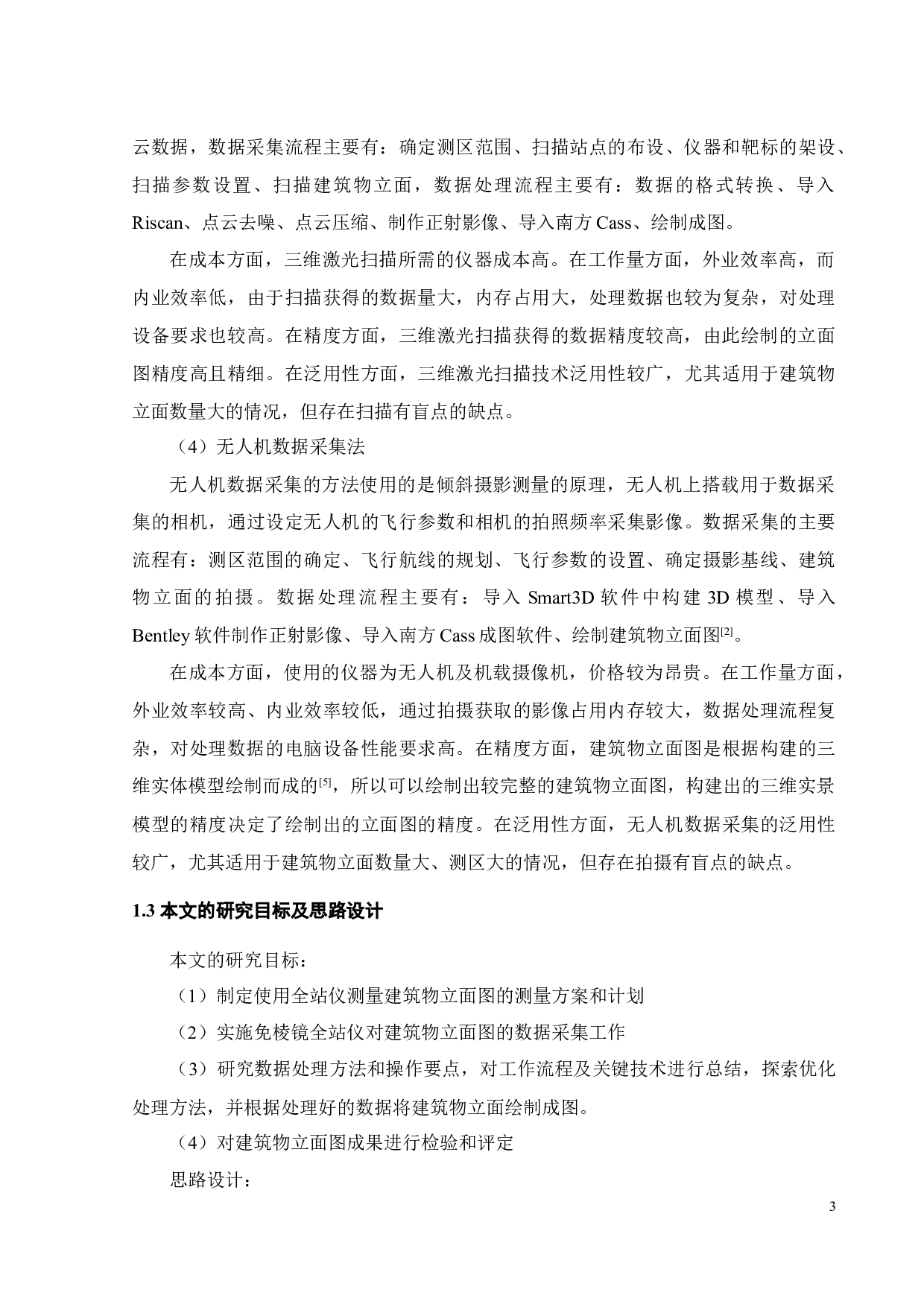

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第6页

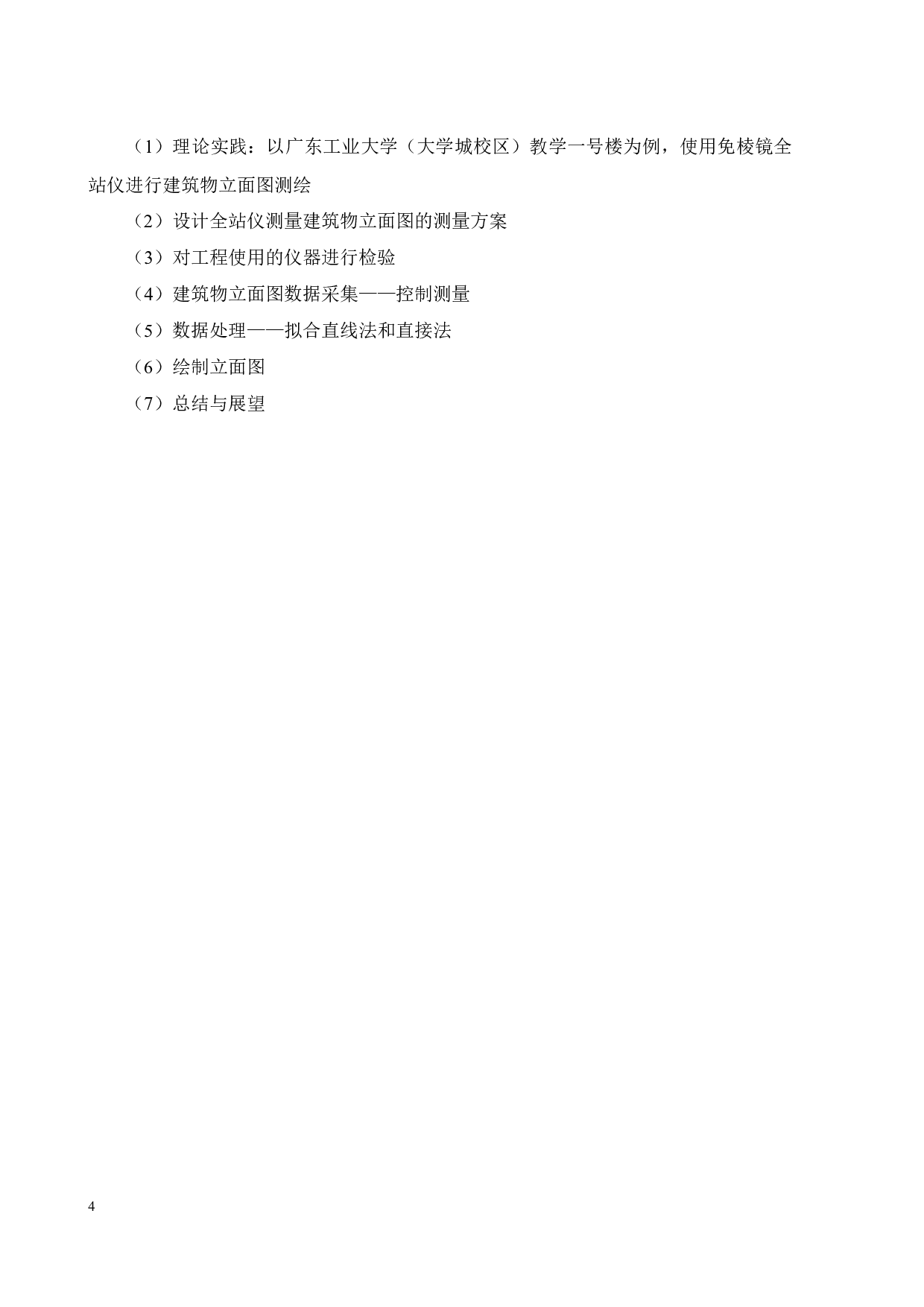

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第7页

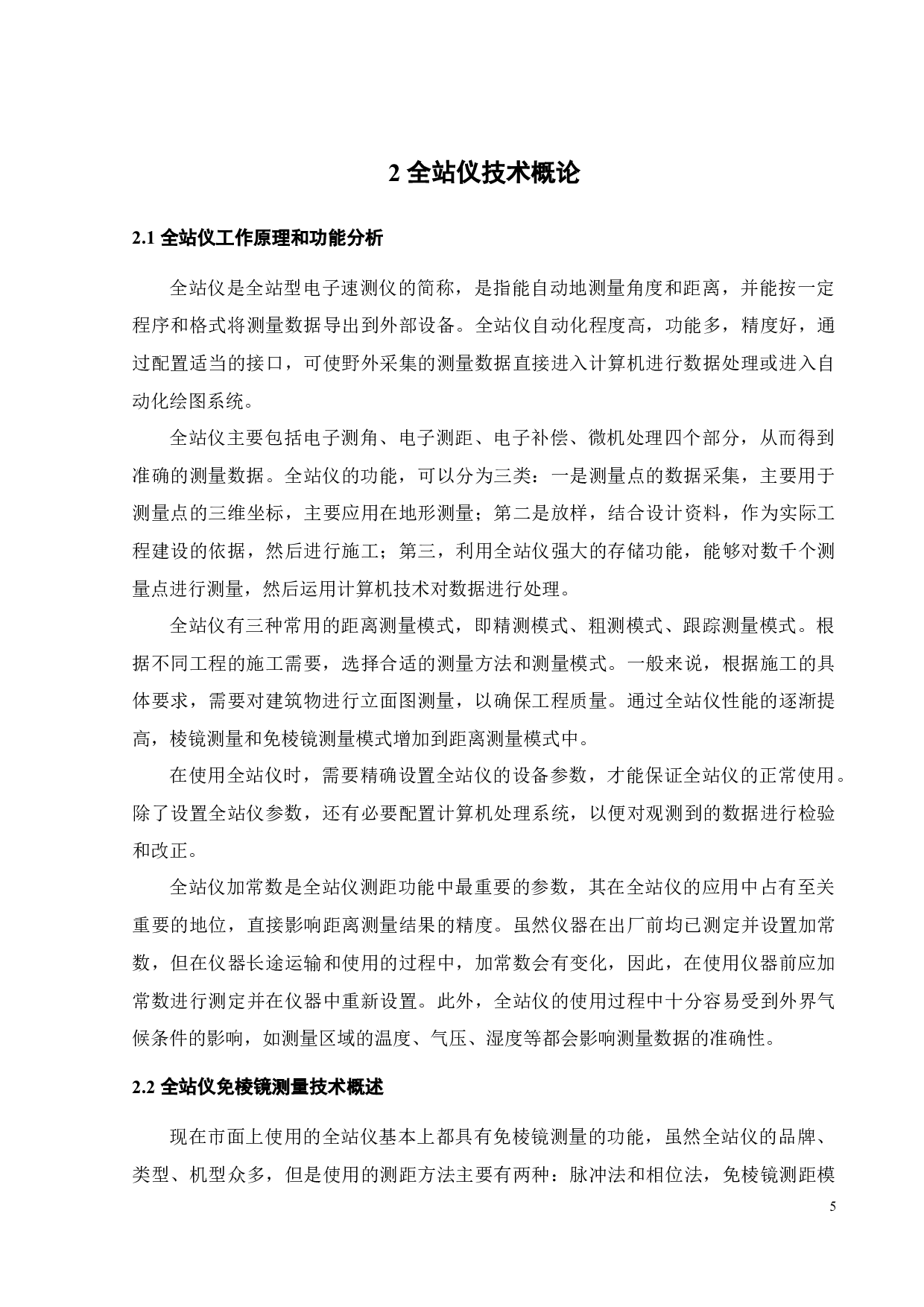

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第8页

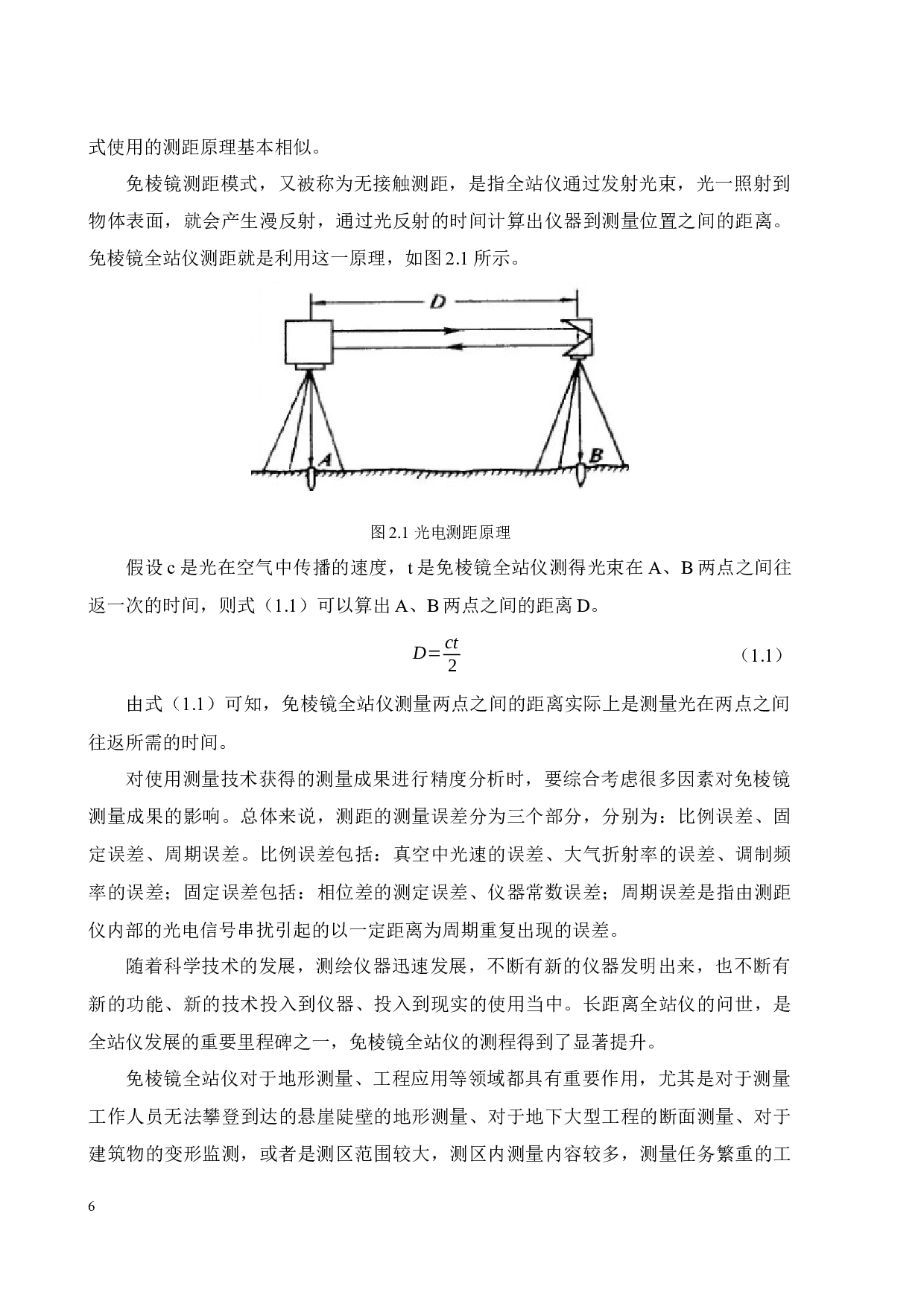

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第9页

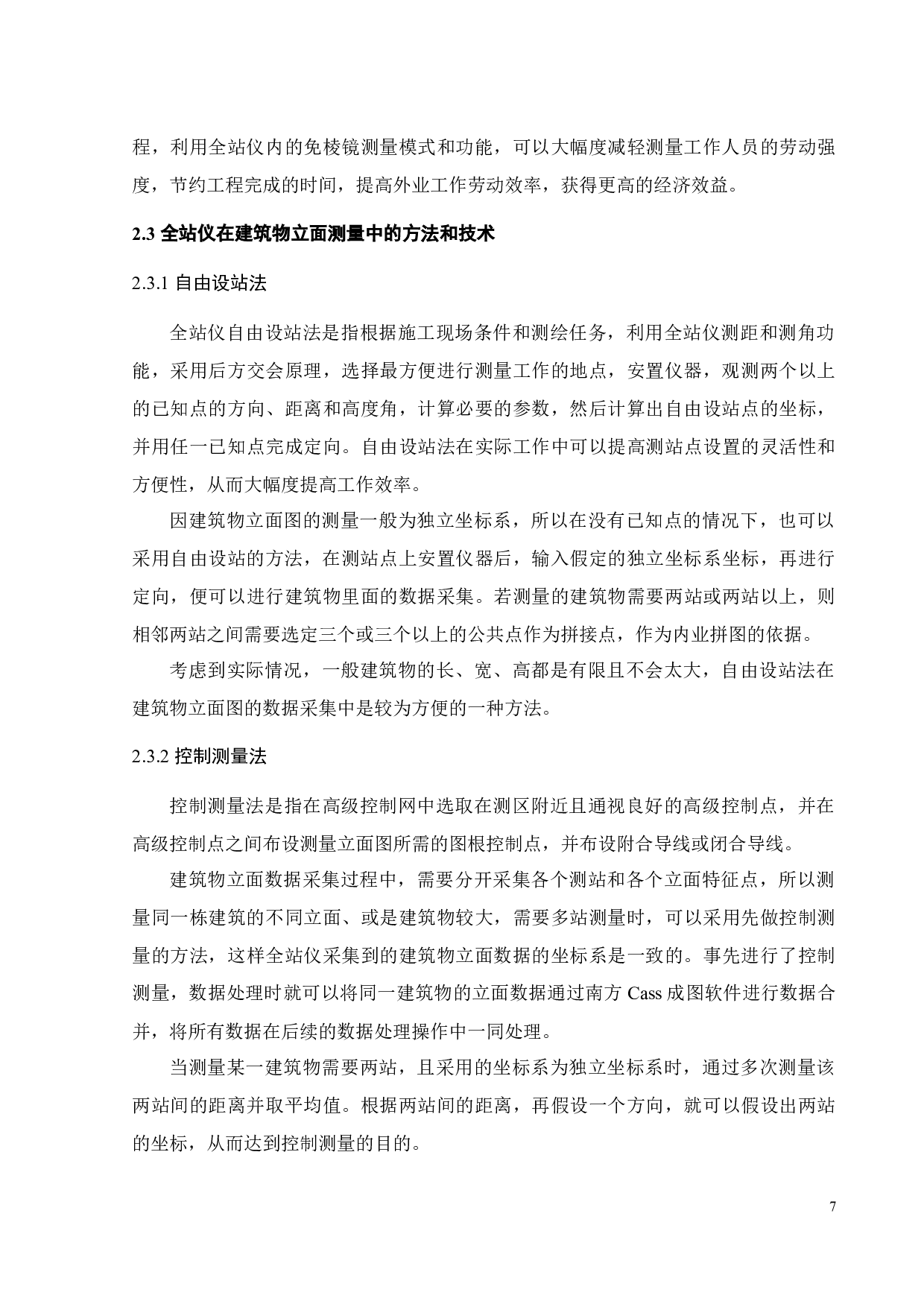

全站仪在建筑物立面图测量中的应用研究-17299字.docx 第10页
剩余24页未读, 下载浏览全部
Abstract The modern construction industry develops rapidly, but there are many problems, such as narrow roads, large flow of people, complex building appendages, difficult access, short distance before and after, small measuring space, difficult to pass and so on, which are not convenient for the building elevation surveying work. However, the equipment cost of 3D laser scanning technology and UAV data acquisition technology is relatively high, and the method of using total station to collect bu
