免棱镜全站仪测距性能及应用研究-17865字.docx

2022及前全 DOCX   32页   下载0   2026-01-15   浏览0   收藏0   点赞0   评分-   22779字   20.00
温馨提示:当前文档最多只能预览 10 页,若文档总页数超出了 10 页,请下载原文档以浏览全部内容。

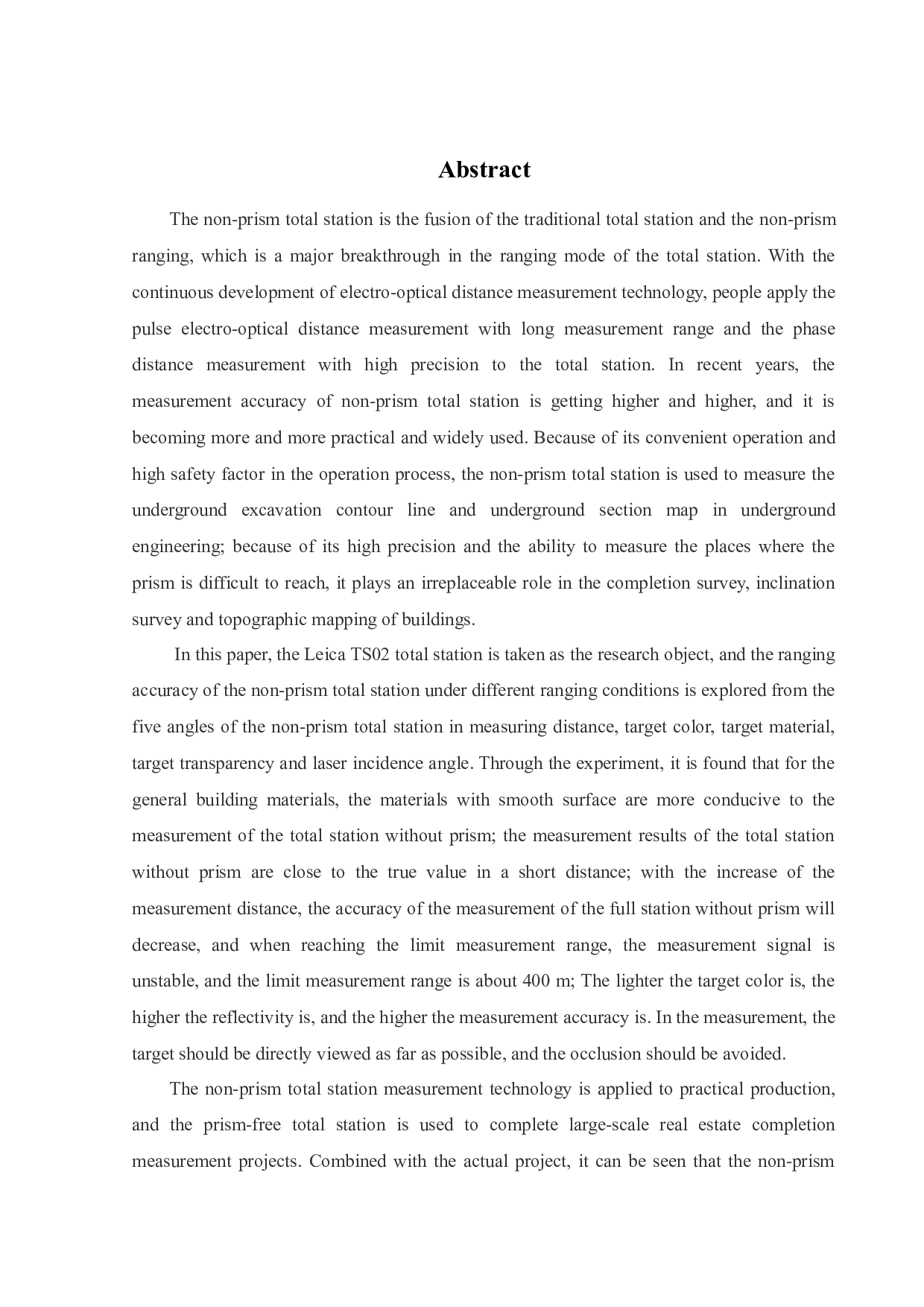

免棱镜全站仪测距性能及应用研究-17865字.docx 第1页

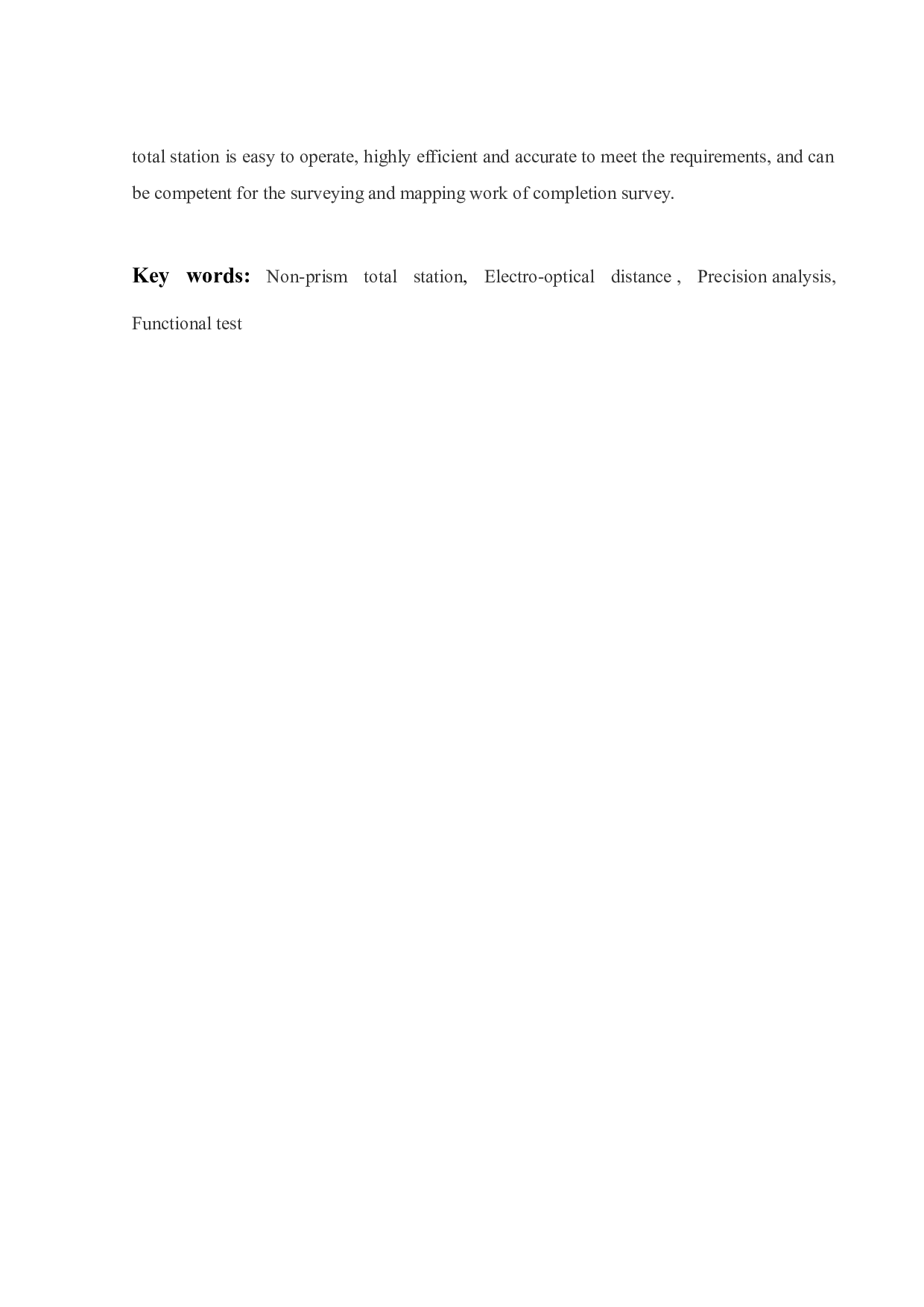

免棱镜全站仪测距性能及应用研究-17865字.docx 第2页

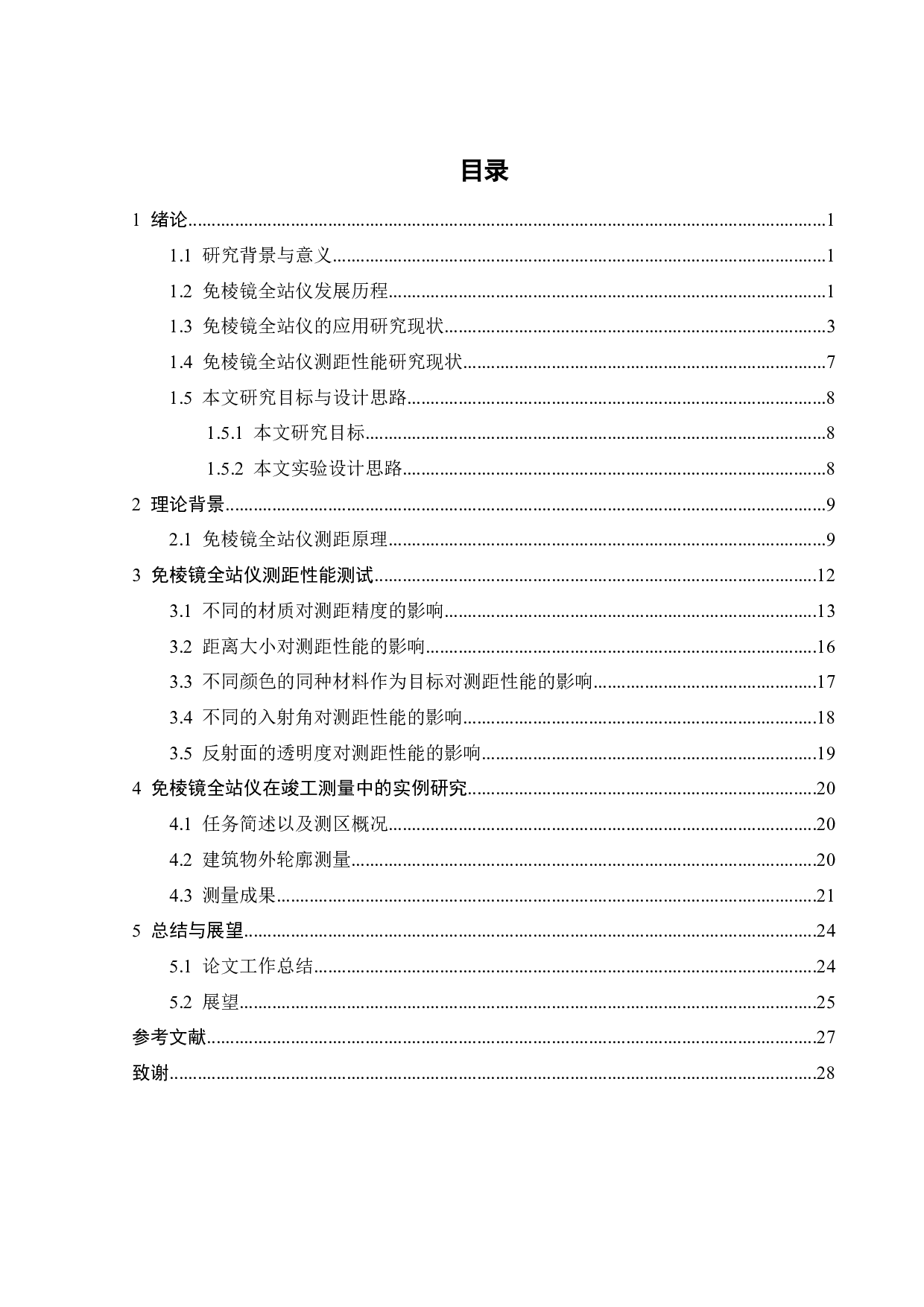

免棱镜全站仪测距性能及应用研究-17865字.docx 第3页

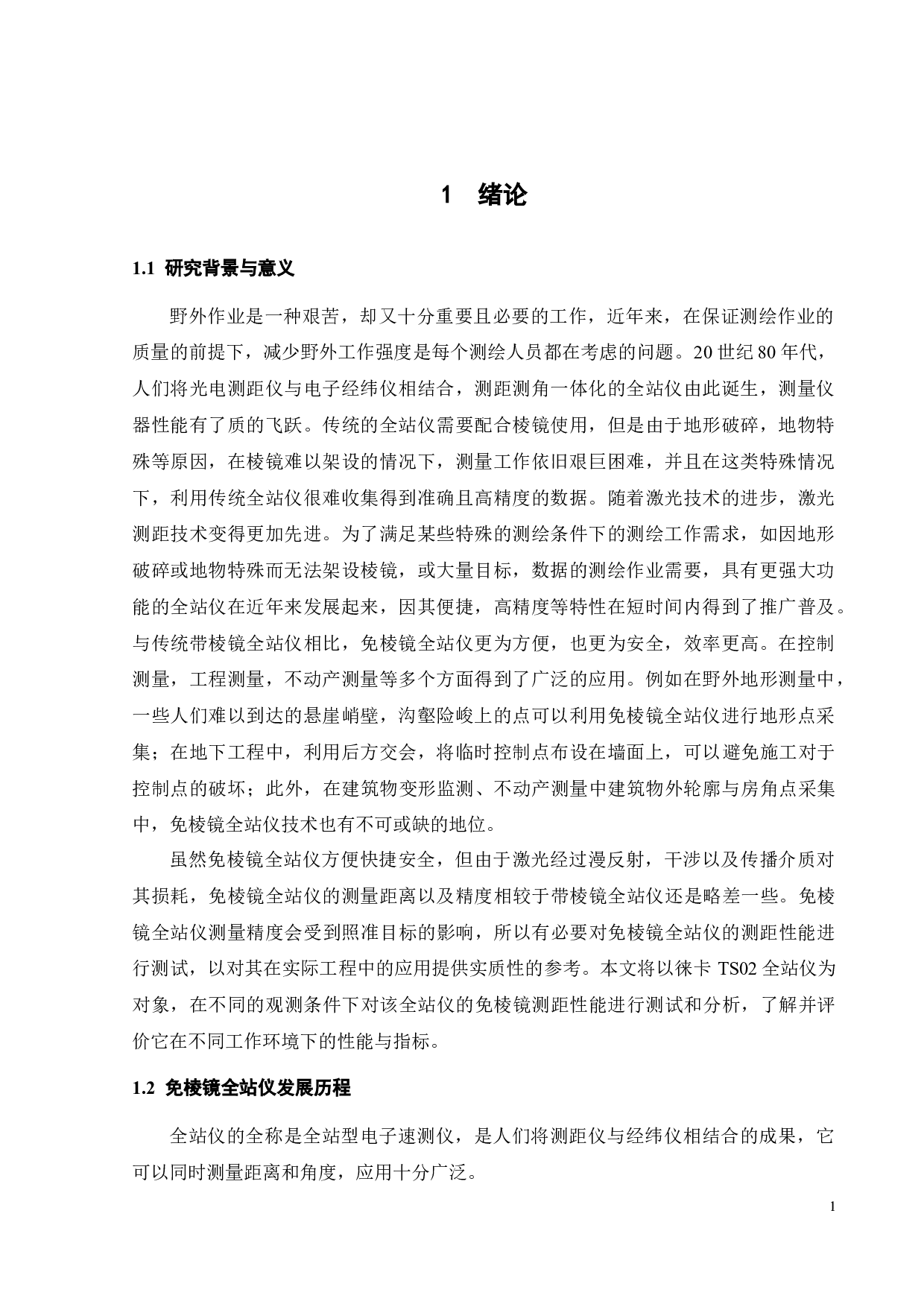

免棱镜全站仪测距性能及应用研究-17865字.docx 第4页

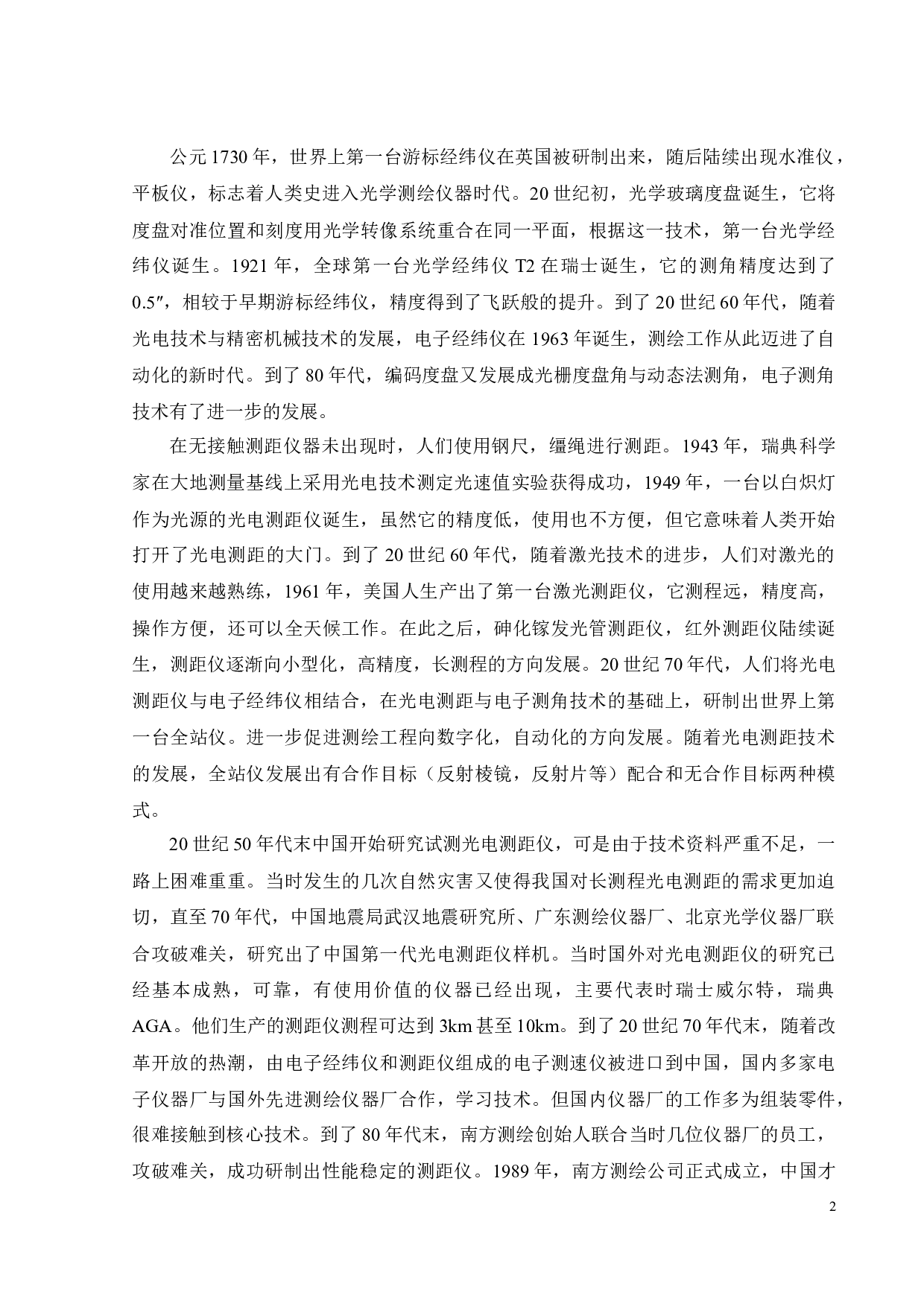

免棱镜全站仪测距性能及应用研究-17865字.docx 第5页
免棱镜全站仪测距性能及应用研究-17865字.docx 第6页

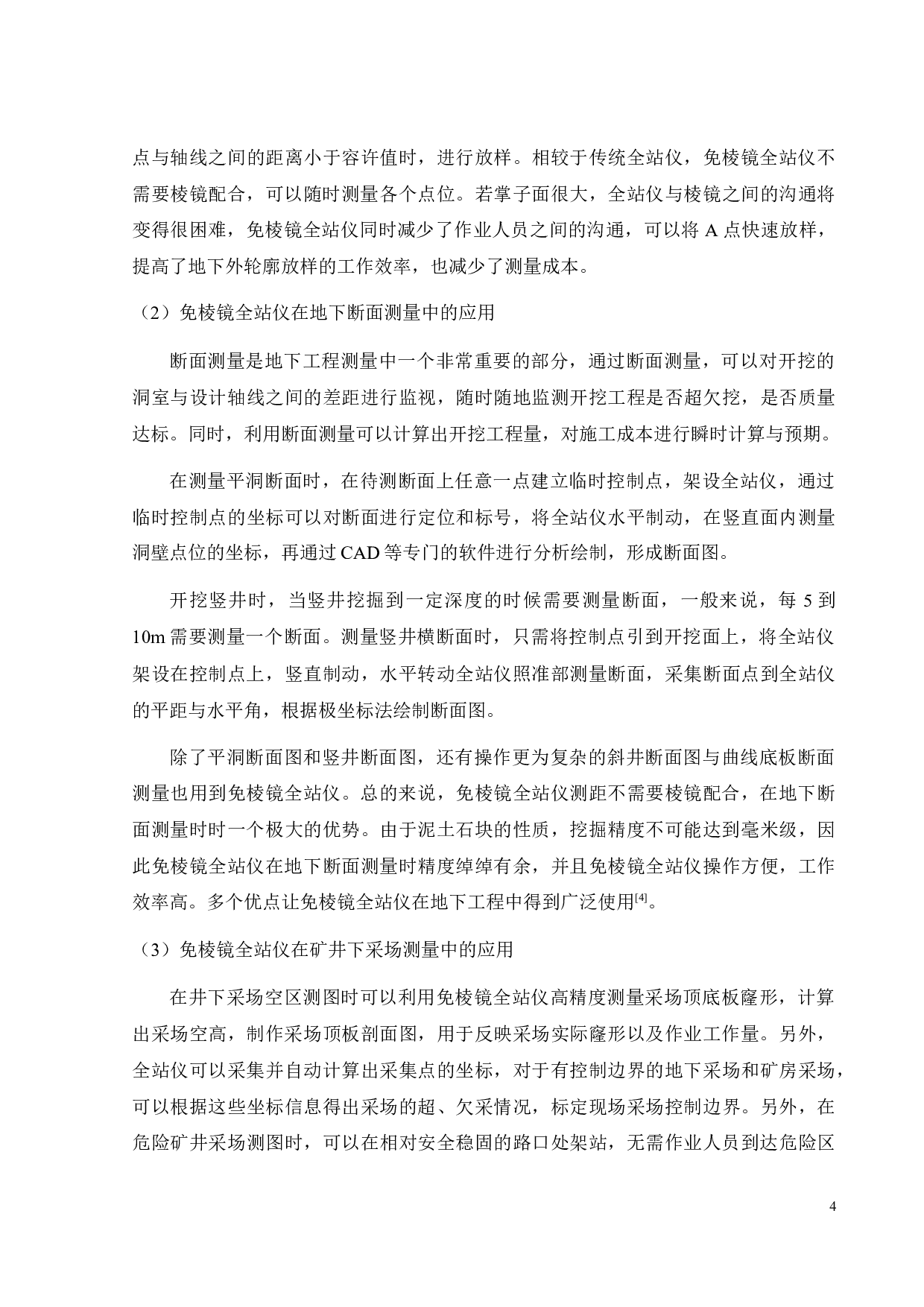

免棱镜全站仪测距性能及应用研究-17865字.docx 第7页

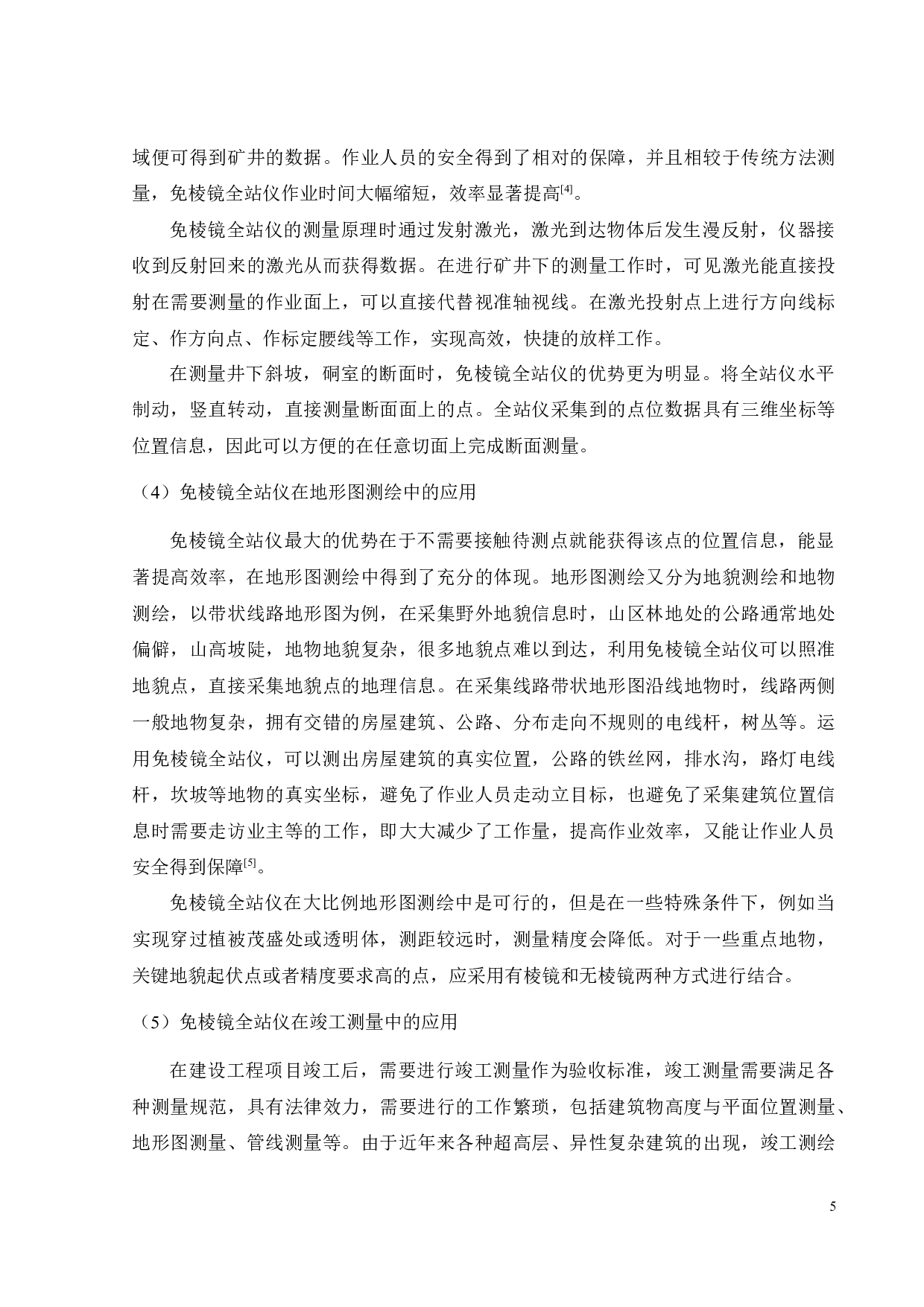

免棱镜全站仪测距性能及应用研究-17865字.docx 第8页

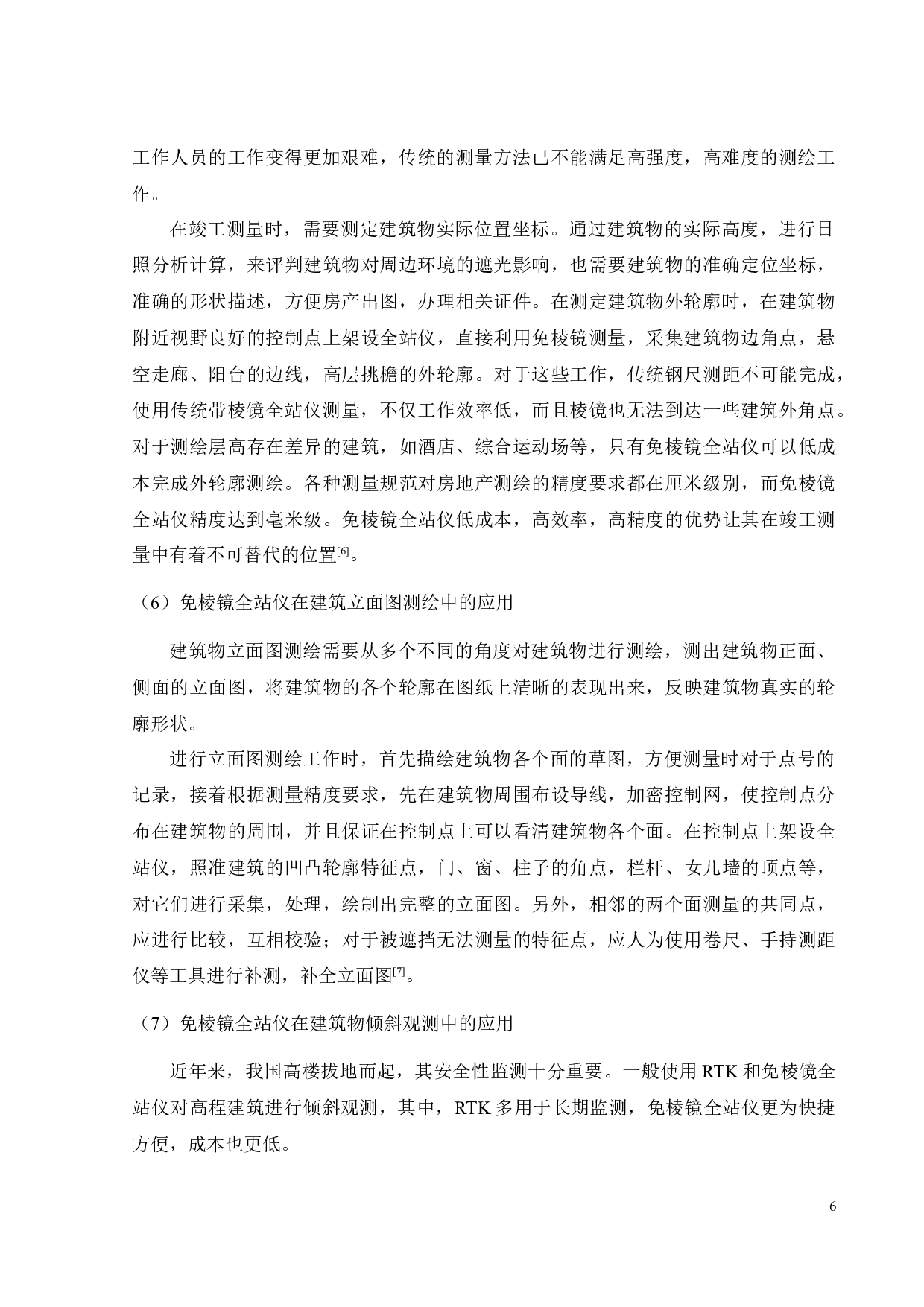

免棱镜全站仪测距性能及应用研究-17865字.docx 第9页
免棱镜全站仪测距性能及应用研究-17865字.docx 第10页
剩余22页未读, 下载浏览全部
Abstract The n on-prism total station is the fusion of the traditional total station and the n on-prism ranging, which is a major breakthrough in the ranging mode of the total station. With the continuous development of electro-optical distance measurement technology, people apply the pulse electro-optical distance measurement with long measurement range and the phase distance measurement with high precision to the total station. In recent years, the measurement accuracy of n on-prism tota
